HG2414DP-090

HG2414DP-090 Sector Antenna, Hyperlink,

HG2414DP-090 Sector Antenna, Hyperlink, Frequency Range 2.4 GHz, Gain 14 dBi, 90 Degrees, Dual Polarized, Dual Feed Sector Antenna.

Description:

• Vertical and Horizontal polarization
• Dual polarity feed system - (2) N-Female connectors
• 10� down-tilt mast mounting bracket and hardware
• Diversity provides improved link perfomance
• All weather operation

HG2414DP-090 Sector Antenna, Hyperlink, Dual Polarized Sector Panel WiFi Antenna combines high gain with a wide 90 beam-width. It is a professional quality "cell site" antenna designed primarily for service providers in the 2.4GHz ISM band. Applications include IEEE 802.11b, 802.11g and 802.11n wireless LAN systems.

Dual Polarized Design
HG2414DP-090 Sector Antenna, Hyperlink, features an unique array of cross di-pole elements. The antenna is fed via two N-Female ports, one for vertically polarized and one for horizontally polarized signals. These feature makes these antennas ideal for polarization diversity systems.

Rugged and Weatherproof
HG2414DP-090 Sector Antenna, Hyperlink, dual-band sector antenna features a heavy-duty fiberglass radome for all-weather operation. The heavy-duty mounting system allows installation adjusts from 0 to 10 degrees down-tilt.

Ideal for Wireless Internet "Cell" Sites
This is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 90 degrees.

Applications:

• 2.4 GHz ISM Band
• IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N, MIMO) Applications
• Bluetooth� & Public Wireless Hotspot
• WiFi & Wireless Video Systems
• Wireless Internet Provider "cell" sites

Specification:
HG2414DP-090 Sector Antenna, Hyperlink,

Electrical Specifications

Mechanical Specifications

Wind Loading Data

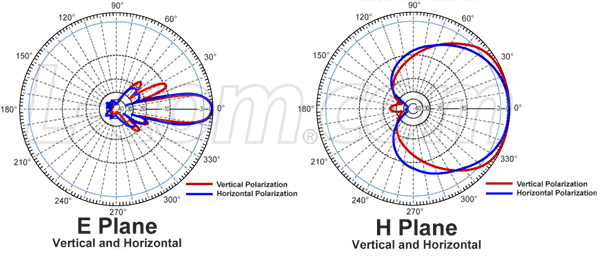

RF Antenna Gain Patterns



Download:
Datasheets

User Manual

Catalog Page

2D Drawing (.pdf)

Product Shipping Weight: 4.5 Kgs
